Understanding Formula 1 Crash Tests and Safety Standards


Formula 1 is not only a pinnacle of motorsport in terms of speed and performance but also stands at the forefront of automotive safety. The crash tests in Formula 1 are crucial components of the sport's safety measures, designed to ensure the structural integrity of the cars and the survival of the drivers during accidents. The FIA, the sport's governing body, supervises these crash tests rigorously, setting and enforcing safety standards that all teams must meet to compete.


The Role of Jackie Stewart in F1 Safety

Jackie Stewart, a former Formula 1 driver and three-time world champion, played a pivotal role in revolutionizing safety standards within the sport. During a time when fatalities and severe injuries were commonplace, Stewart's advocacy for enhanced safety measures transformed the racing world.


He campaigned for better protective gear, the introduction of medical facilities at race tracks, and structural changes to both cars and circuits, which have significantly improved the overall safety of the sport.


How Do The Formula 1 Crash Tests Work?

Crash tests in Formula 1 are comprehensive and are typically conducted at facilities like the Cranfield Impact Centre in Bedfordshire, England. These tests are categorized into dynamic impact tests, static load tests, and rollover tests, each designed to evaluate different aspects of the car's structural integrity and safety features under simulated accident conditions.


Similarly, the rigorous testing extends to Formula One brake systems, which undergo their own specialized assessments to ensure maximum performance and reliability under the extreme conditions of a race.


Types of Crash Tests


Static Load Tests

Image Source: MaxF1.Net

Dynamic Impact Tests

Dynamic impact tests involve simulating collisions from multiple directions to test the car's resilience. The front, side, rear, and steering columns of the chassis is subjected to impacts that mimic real-world crash scenarios. For example, the front impact test might be conducted at speeds of 15 meters per second, using a crash dummy to assess the deceleration forces experienced by a driver during a frontal collision.


Static Load Tests

Static load tests focus on the car's ability to withstand pressures without significant deformation or damage. These tests are critical for assessing the strength of the car's front, side, and rear structures. For instance, pressures are applied to the chassis' sides at the leg and seat levels to ensure they meet the stringent standards set by the FIA, maintaining the integrity of the survival cell and other critical components.


Rollover Tests

Rollover tests check the car's rollover structure's effectiveness, which is crucial in protecting the driver during a flip or roll. Tested in three directions: literally, longitudinally, and vertically the structures must withstand substantial forces without excessive deformation, ensuring the driver's space remains uncompromised.


These tests collectively ensure that every Formula 1 car on the track not only competes at high speeds but also offers maximum safety for its drivers. By adhering to these rigorous standards, Formula 1 continues to lead not just in motorsport but in automotive safety innovation, influencing safety technologies in consumer vehicles worldwide.


Impact on Car Design and Safety Features

Formula 1 crash tests have a profound influence on the design and development of F1 cars, particularly concerning the survival cells and impact structures. These tests ensure that each car's design incorporates the ability to withstand severe impacts without compromising the driver's safety.


Survival cells, made from advanced composite materials, are engineered to remain intact during collisions to protect the driver. Furthermore, the introduction of strengthened cockpit walls and advanced roll structures has enhanced the structural integrity of the cars. These roll structures are designed to withstand extreme forces during rollovers, ensuring that the space around the driver remains secure.


Real-World Implications of F1 Safety Innovations

The innovations developed for Formula 1 safety have significant implications beyond the racetrack, influencing the automotive industry at large. Technologies such as energy-absorbing materials and advanced safety structures have been adapted for consumer vehicles, enhancing passenger safety in everyday road cars.


Additionally, the FIA's involvement in road-car safety programs, such as the Euro-NCAP, demonstrates the crossover of F1 safety technology into mainstream automotive applications. This collaboration helps raise the safety standards of passenger vehicles, making cutting-edge safety technology accessible to a broader audience.


While primarily focused on vehicle safety, the meticulous engineering behind F1 technologies, including those developed to avoid F1 engine penalties, also contributes to the durability and efficiency of engines in consumer vehicles.


Technical Regulations and Homologation Process

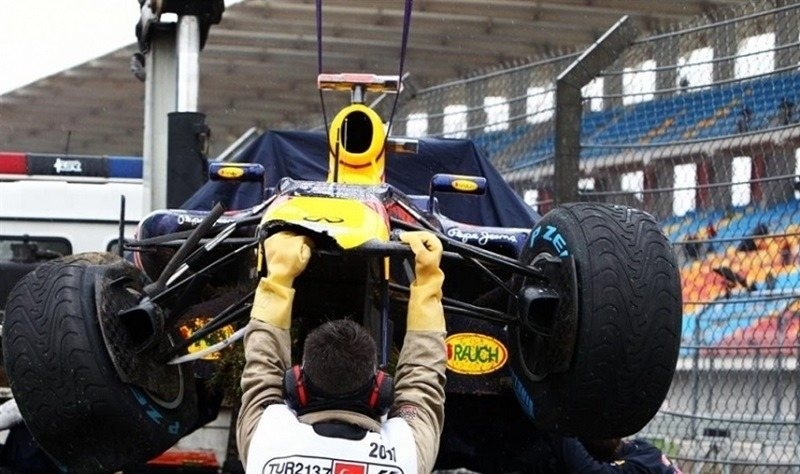

Homologation Process

Image Source: Catalan Engineering World Wide

The FIA's Technical Regulations, specifically Article 13, play a crucial role in defining the safety standards and crash test procedures for Formula 1 cars. These regulations detail the requirements for various crash tests, including front, side, and rear impact tests, as well as rollover tests.


The homologation process ensures that all F1 cars meet these stringent requirements before they are allowed on the track. This process involves rigorous testing and certification to confirm that each car's design and construction comply with the safety standards set forth by the FIA, emphasizing the sport's commitment to driver safety.


Importance of Continuous Safety Improvements

The ongoing development of safety standards in Formula 1 is driven by past incidents and continuous technological advancements. Each racing incident is meticulously analyzed to improve safety protocols and car design, ensuring that lessons are learned and integrated into future safety measures.


Notable instances, such as high-impact crashes where drivers emerged unscathed, underscore the effectiveness of F1 safety standards. These instances highlight the critical role of continuous improvement in safety technologies and the FIA's proactive approach to enhancing safety standards.


You may also likeThe Crucial Role Of F1 Pre-Season Testing: Pit To Podium


Key Takeaways

The rigorous testing and regulation of Formula 1 cars underscore the sport's unwavering commitment to safety. The homologation process and adherence to detailed technical regulations ensure that all cars on the track meet the highest safety standards.


The FIA's continuous efforts to improve these standards, coupled with the application of F1 safety innovations in consumer vehicles, highlight the broad impact of these technologies. As Formula 1 continues to evolve, the commitment to safety remains a cornerstone, ensuring the well-being of drivers and advancing automotive safety on a global scale.
