Understanding F1 Engine Penalties: Unraveling The Impact

04-04-2024

Image Source: Formulapedia

Power units and gearboxes often stir discussions as F1 seasons progress, given the allocated quotas for each driver and the ensuing grid penalties if these limits are exceeded. Here's a comprehensive overview of these crucial components for the 2024 F1 campaign...

Elements of an F1 Power Unit

Current F1 power units encompass multiple components: the internal combustion engine (ICE), motor generator unit-heat (MGU-H), motor generator unit-kinetic (MGU-K), turbocharger, energy store (ES), control electronics (CE), and exhaust system. According to the engine regulations throughout the 2024 season, a driver is limited to using no more than four ICEs, MGU-Hs, MGU-Ks, and turbochargers, along with two energy stores and control electronics, and eight sets of exhaust components (including primaries left-hand side, primaries right-hand side, secondary LHS, and secondary RHS). 2024 Power Unit Component Allocation:

• Motor Generator Units-Heat (MGU-H): 4
• Motor Generator Units-Kinetic (MGU-K): 4
• Internal Combustion Engine (ICE): 4
• Turbocharger: 4
• Energy Store (ES): 2
• Control Electronics (CE): 2
• Exhaust: 8

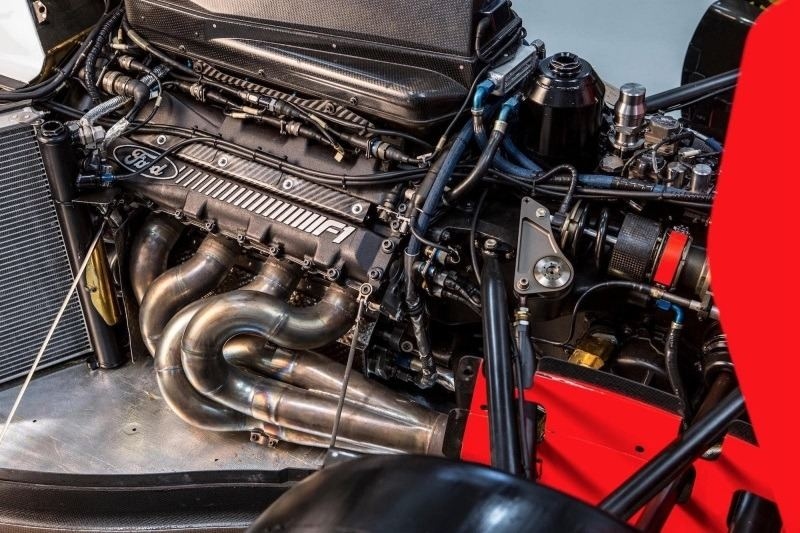

Enforcement of F1 Engine Penalties

Image Source: Medium

If a driver surpasses the prescribed numbers for any power unit element, they will face grid penalties starting from the first race where the excess elements are utilized. Exceeding the allocation for any of the seven elements incurs a 10-place grid penalty for the first instance, with subsequent occurrences leading to a five-place grid drop all penalties at a given event adding up cumulatively. Drivers accumulating penalties exceeding 15 grid places will be relegated to the back of the grid. To address the confusion experienced during the previous Italian Grand Prix, the FIA has clarified its penalty application process. Drivers with 15 or fewer cumulative grid penalties will receive a "temporary" grid position corresponding to their qualifying classification. For instance, if a driver qualifies 10th and accrues penalties totaling 15 spots, their temporary position will be 25th on the grid.

In cases where multiple drivers share the same temporary position, the lower-finishing qualifier retains the position, with the faster driver placed immediately ahead. Once unpenalized drivers are allocated positions, those with temporary slots will be rearranged to fill gaps and complete the grid. Drivers with penalties exceeding 15 places or those relegated to the back will start behind all other classified drivers. A new power unit element is considered 'used' once the car exits the pit lane during an official session, with the power unit and gearbox components sealed to prevent unauthorized replacements, monitored by the FIA.

If a driver introduces multiple identical penalized elements, only the last fitted element may be used without further penalty in subsequent events. Additionally, if a driver is substituted during the season, their replacement is treated as the original driver for assessing power unit usage. It's worth noting that newly introduced power unit elements become part of the driver's pool for the remainder of the season, allowing interchangeability without penalty between races. The same principles apply to gearboxes.

You May Also Like: Formula One Brake Systems: Delving Into The Science

Elements That Constitute an F1 Gearbox

Drivers are subject to limitations regarding the usage of Restricted-Number Components (RNCs) throughout the season. RNCs encompass components forming the gearbox, which are categorized into the gearbox case and cassette, the gearbox driveline, gear change components, and auxiliary components.

2024 Restricted-Number Component Allocation

• Gearbox case and cassette 4
• Gearbox driveline, gear change components, and auxiliary components 4

Enforcement of F1 Gearbox Penalties

Image Source: Medium

Similar to power units, drivers possess a pool of four gearboxes that can be interchanged during the season. Grid penalties are incurred only when a driver surpasses their allocation for any of the aforementioned gearbox components. Exceeding the allocation for either of the components results in a five-place grid penalty for the first instance, with subsequent offenses attracting the same penalty. If both sets of components' allocations are exceeded simultaneously, a 10-place grid drop is incurred. In instances of power unit or gearbox penalties, drivers and their teams may opt for multiple changes simultaneously, accumulating penalties at once to preserve their pool for the rest of the season. Certain circuits, notably Monza and Spa-Francorchamps, witness more frequent comprehensive component changes due to their layout, particularly the long straights, allowing drivers to recover positions with fresh units.

Why do Drivers Receive Grid Penalties for Component Changes?

Primarily, it serves as a cost-saving measure. Previously, F1 teams frequently replaced engines after nearly every session, resulting in extensive use and high costs. Implementing penalties encourages teams to economize and minimize component changes.

Significance of the Term 'Engine Freeze'

In 2022, an engine freeze was implemented, with an initial set of components locked from March 1 and another set from September 1, extending until the conclusion of the 2025 season, preceding the introduction of new power unit regulations. During the 'homologation' period, manufacturers may request modifications to power unit elements for reasons such as reliability, safety, cost-saving, and minimal incidental changes, with applications reviewed by the FIA Technical Department. This engine freeze enables manufacturers to focus resources on developing new power units for 2026 without continuous improvements to the current generation of engines. Similarly, gearboxes are also homologated, with some flexibility introduced for 2023 to permit modifications in cases of unavailable materials, processes, or proprietary parts, resolving reliability issues, or for cost-saving at the start of each season.

Similar Reads You May Enjoy: A Dive Into Formula 1 Suspension Mechanics: Riding The Waves

Conclusion

Comprehending F1 engine penalties is crucial for grasping the intricate dynamics of the sport. These penalties serve as a balancing act between performance, reliability, and cost-saving measures. By restricting the number of power units and gearbox components that drivers can use throughout the season, F1 aims to promote resourcefulness, strategic planning, and efficiency within teams. The enforcement of grid penalties for exceeding component allocations adds an extra layer of complexity to race weekends, affecting not only individual drivers but also team strategies and overall championship standings. Furthermore, the concept of an engine freeze, introduced to curb escalating costs and foster innovation, underscores F1's continuous evolution and the delicate balance between tradition and progress.
